产品描述
规格
| 规格型号 | P3 | P3 | P4 | P4 | P5 | P5 | P5 | P6 | P6 | P10 |
| 点间距 | 3mm | 3mm | 4mm | 4mm | 5mm | 5mm | 5mm | 6mm | 6mm | 10mm |

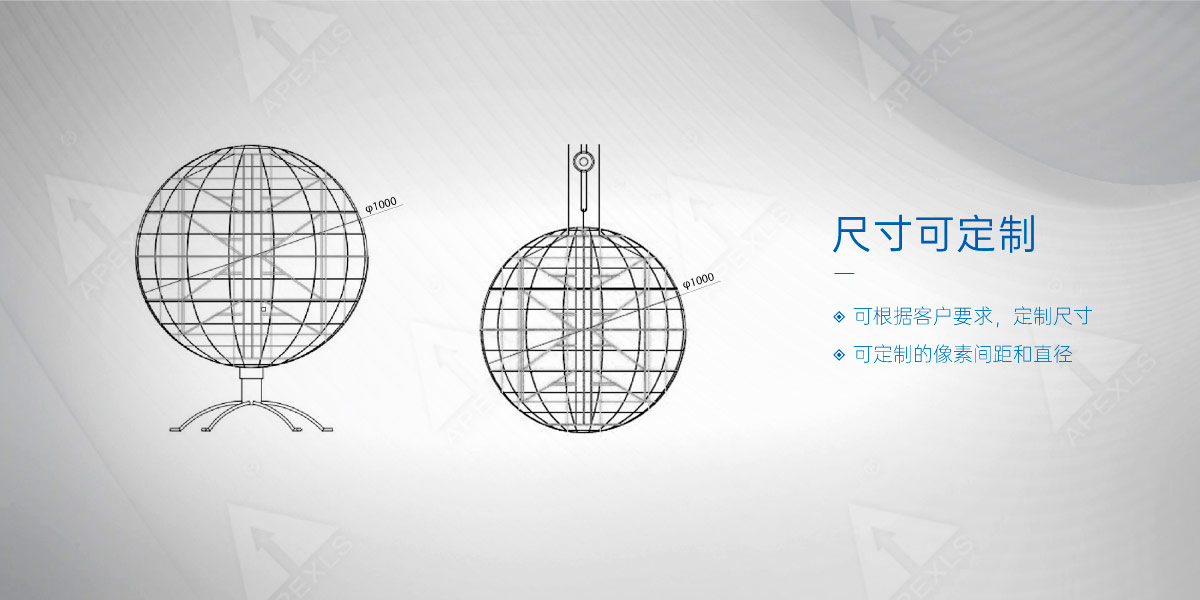

| 直径（可定制） | 1.8m/2m | 1.2m/1.5m/1.6m/3m | 1m/1.5m/1.8m/2.2m | 5m | 1m/1.5m | 2.2m/2.5m | 7.2m | 1.5m/2m | 2m | 6m |
| LED外型 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD1921 | SMD3535 |
| 像素密度 | 111111(点/㎡) | 111111(点/㎡) | 62500(点/㎡) | 62500(点/㎡) | 40000(点/㎡) | 40000(点/㎡) | 40000(点/㎡) | 27777(点/㎡) | 27777(点/㎡) | 10000(点/㎡) |
| 使用环境 | 户内 | 户内 | 户内 | 户内 | 户内 | 户内 | 户内 | 户内 | 户外 | 户外 |
| 扫描方式 | 1/24 | 1/32 | 1/16 | 1/12 | 1/8 | 1/16 | 1/12 | 1/8 | 1/8 | 1/2 |
| 整球亮度 | ≥1400（cd/㎡) | ≥1000（cd/㎡) | ≥1500（cd/㎡) | ≥2000（cd/㎡) | ≥1800（cd/㎡) | ≥1000（cd/㎡) | ≥1300（cd/㎡) | ≥1200（cd/㎡) | ≥5000（cd/㎡) | ≥7500（cd/㎡) |
| 整球平均功耗 | ≤300(W/㎡) | ≤250(W/㎡) | ≤280(W/㎡) | ≤380(W/㎡) | ≤400(W/㎡) | ≤200(W/㎡) | ≤260(W/㎡) | ≤330(W/㎡) | ≤270(W/㎡) | ≤430(W/㎡) |
| 整球最大功耗 | ≤700(W/㎡) | ≤550(W/㎡) | ≤620(W/㎡) | ≤850(W/㎡) | ≤880(W/㎡) | ≤440(W/㎡) | ≤580(W/㎡) | ≤650(W/㎡) | ≤600(W/㎡) | ≤870(W/㎡) |
| 整球面积 | 4πR2 | |||||||||
| 单位重量 | ≤30kg/㎡ | |||||||||
| 刷新频率 | 1920Hz | |||||||||
| 换帧频率 | ≥60Hz | |||||||||
| 控制方式 | 同步/异步 | |||||||||
